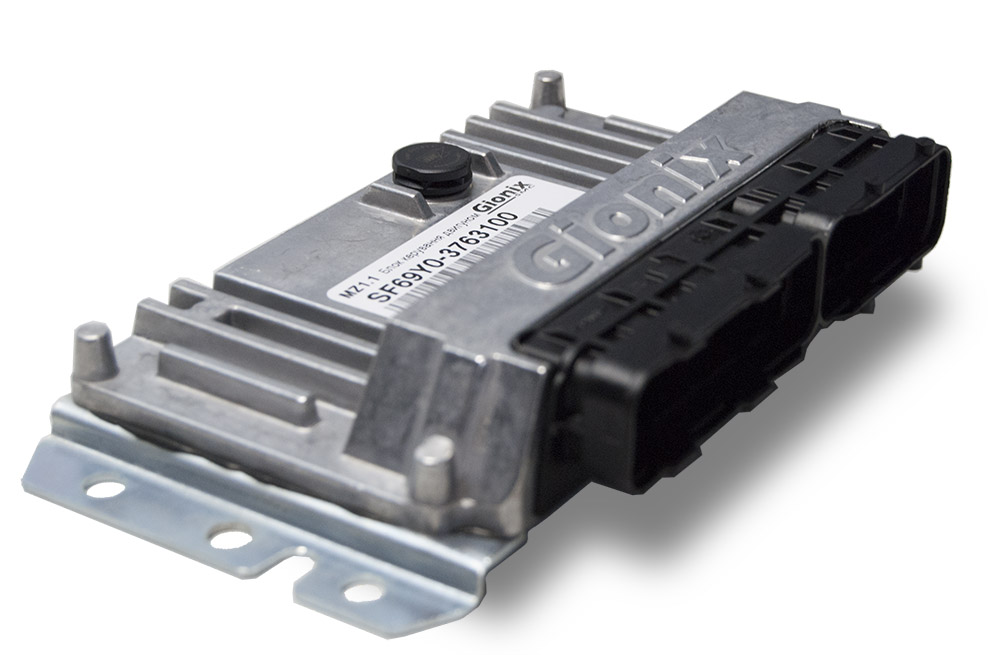

Gionix MZ1 Engine Control Unit4-cylinder gasoline engine control unit.

Gionix MZ1 is a the first engine control unit (ECU) developed and produced by Gionix, it provides real-time control of air-fuel mixture, ignition timing, and a variety of other functions, delivering efficient, reliable and economical operation of internal combustion engine. MZ1 is specifically designed for 4-cylinder gasoline engines. This unit supports the following standards:

  • Euro-3
  • Euro-4
  • Euro-5
  • EOBD
  • Flexible configuration of the unit to meet the needs of the client.
  • Sufficient level of hardware performance combined with efficient software allows to meet customers high demands and emission requirements.

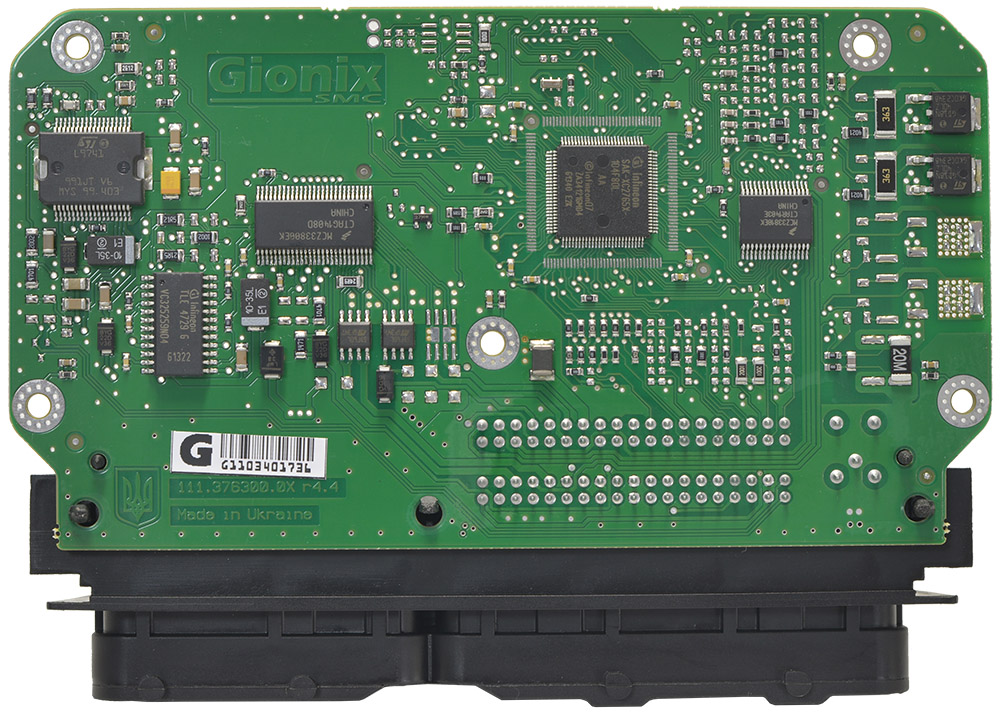

  • Small body size, the use of FR4 PCB and sealed enclosure offers significant installation flexibility in the vehicle interior and under the hood.
  • Highly sensitive knock channel with digital signal processing (DSP) can significantly reduce fuel consumption and CO2 emissions.
  • With external Peak&Hold allow two-fuel LPG control strategy.
  • Calibration using a high-performance equipment ETAS ETK and cheap CAN XCP.
  • Model-based air-charge estimation and torque control.
  • Linear EGR control strategy.
  • In-house designed OSEK compatible RTOS.
  • Fixed-point math libs.
  • Modular design.
  • Bootloader with encryption.
  • Dimensions: 205x105x41 mm
  • Weight: 550 g
  • Protection rating: IP50 or IP6K9K
  • Connector: 81 pin
  • Microcontroller: 16-bit with 832Kb Flash
  • CAN: x1
  • KLine x2
  • Injectors:  up to x4
  • Ignition coils: up to x4
Part number Engine Vehicle Options
TF69Y0-3763000-60 GM A15SMS 1,5L 8V ZAZ Lanos Euro-4, old inst. clust.
TF69Y0-3763000-60F GM A15SMS 1,5L 8V ZAZ Lanos Euro-4
SF69Y0-3763100 GM F15S3 1,5L 8V ZAZ Vida Euro-4
TF69Y0-3763105 AG GM A15SMS 1,5L 8V ZAZ Lanos Euro-5, external LPG drivers
TF698K-3763105 AG MeMZ-307 1,3L 8V ZAZ Sens Euro-5, external LPG drivers
SF69Y0-3763105 AG GM F15S3 1,5L 8V ZAZ Vida Euro-5, external LPG drivers
SF6950-3763105 AG Chery SQR477F 1,5L 16V ZAZ Vida Euro-5, external LPG drivers
TF69Y0-3763105 A1 GM A15SMS 1,5L 8V ZAZ Lanos Euro-5
SF69Y0-3763105 A1 GM F15S3 1,5L 8V ZAZ Vida Euro-5
